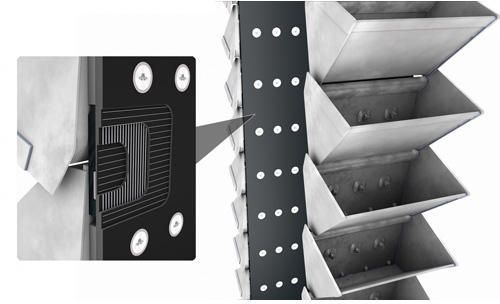

GFW supplies rubber bucket belts for steel shot elevators in various sizes, thickness and features according to the requirements and demands of the work.
·
Rubber.
·
Types of textile:
EP Polyester.
·
Strength member or Carcass of one, two,
three or more fabrics (breaking loads).
·
Tear resistant, low
stretch characteristics and resistance to abrasion of the cover.
·
Diameter of drum recommended: 250 to 1250 mm, according to
number of plies.
·
KG –
fire retardant, oil resistant, antistatic and complies with ATEX standard.
·
OR –
highly resistant to oils.
·
HEAT –
highly resistant to abrasion and temperature (150 ºC).
·
HI-HEAT –
highly resistant to abrasion and high temperatures (200 ºC).
·
Y –
highly resistant to abrasion
| Types | Properties | Temperature |
|---|---|---|
| EP 630/3 1,5+1,5 KG | CR/SBR/BR fire retardant, oil resistant, antistatic | -15ºC to +80ºC |
| EP 800/4 2+2 KG | CR/SBR/BR fire retardant, oil resistant, antistatic | -15ºC to +80ºC |
| EP 1000/5 2+2 KG | CR/SBR/BR fire retardant, oil resistant, antistatic | -15ºC to +80ºC |
| EP 1250/5 2+2 KG | CR/SBR/BR fire retardant, oil resistant, antistatic | -15ºC to +80ºC |
| EP 800/4 2+2 OR | NBR, oil resistant, antistatic | -20ºC to +100ºC |
| EP 800/4 2+2 HEAT | SBR, antistatic, temperature | -20ºC to +150ºC |
| EP 800/4 2+2 HI-HEAT | EPDM, antistatic, temperature | -40ºC to +200ºC |
| EP 1250/5 2+2 Y | SBR, antistatic, abrasion resistant | -30ºC to +70ºC |
If required, GFW can supply the belt with the buckets already mounted, as long as the weight of the assembled product is not a problem for later installation.
